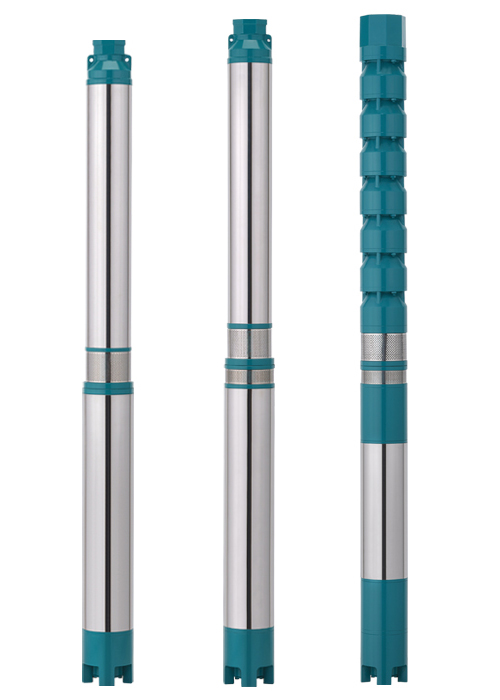

V4 Borewell Submersible Pump Set

KW/H.P. Range	0.37 to 3.70 KW / 0.50 to 5.00 H.P. Single Phase
KW/H.P. Range	0.75 to 5.50 KW / 1.00 to 7.50 H.P. Three Phase
Maximum Stage	55 Stage
Maximum Discharge	550 LPM
Maximum Head	Upto 452 Meter
Operating Voltage Range	160 to 240 Single Phase &300 to 440 Three Phase
Rated Voltage/Frequency	220 Volt & 415 Volt / 50 Hz
Standard Voltage Range	-15% +6% of Rated Volt
Maximum Temp.of Liquid	33° C

Stator	CRNO / CRC
Rotor	EC Grade Copper
Winding	EC Grade Copper - Three Coated Polywrap
Motor Body	Stainless Steel
Motor Shaft	S.S. 410
"Housing Base & Con. Pic.	Cast Iron
Pump Body	Stainless Steel
Pump Shaft	S.S. 410
Bowl	GF 30 Noryl (Virgin) & Cast Iron / Noryl
Impeller	GF 30 Noryl (Virgin) / Noryl
Suction & Outlet	Cast Iron
Thrust Bearing	Carbon/S.S. Segments & Loose Segments
Bushing	LTB-4

Proven & reliable design for critical conditions.
Standard 2 pole, speed 2900 rpm motor.
High operating efficiency.
Water cooled rewindable motor can be easily dismantled and repaired can handle up thrust loads.
Unique single piece stainless steel motor body design more strength. designed for wide voltage fluctuations.
Lip seal and sand guard to prevent ingress of impurities into the motor.
Easy assemble, dismantle. easily service pump & rewindable motor.
Suction screen and coupling are made of stainless steel.
Light weight and compact.

For Technical Details Download PDF
