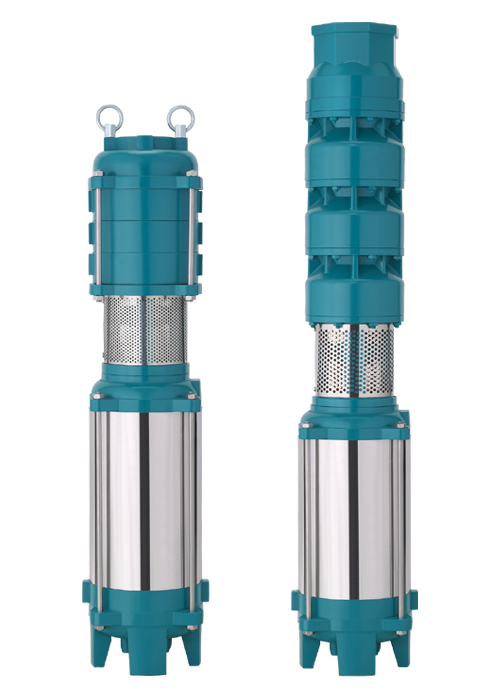

Agriculture Vertical Openwell Pump Set

KW/H.P. Range 2.20 to 15.00 Kw / 3.00 to 20.00 H.P. Three Phase
Maximum Stage Vertical Openwell 8 Stage
Maximum Discharge 1270 LPM
Maximum Head Upto 120 Meter
Operating Voltage Range 300 to 440 Three Phase
Rated Voltage/Frequency 415 Volt / 50 Hz
Standard Voltage Range -15% +6% of Rated Volt
Maximum Temp.of Liquid 33° C
Stator CRC
Rotor EC Grade Copper & Aluminium
Winding EC Grade Copper - Three Coated Polywrap
Motor Body Stainless Steel & Cast Iron
Motor Shaft S.S. 410
Housing & Cashing Cast Iron
Pump Shaft S.S. 410
Bowl Cast Iron
Impeller S.S. 410 & Cast Iron
Suction & Outlet Cast Iron
Thrust Bearing Carbon/S.S. Segmen & S.S. Counter
Bushing LTB-4
  • S.S. body for longer life.
  • Dynamically balanced rotating parts.
  • Flatter efficiency curve for efficient operation.
  • Non-overloading power characteristic for safety of motor.
  • Replaceable wearing parts.
  • Water shower arrangement for surface application.
  • High durable water cooled rewindable motor.
  • Foundation & installation not required.
  • Agriculture.
  • Industries.
  • High-Rised building.
  • Drip and sprinclur.
  • Houses.
  • Hotels.
  • Gardens.
